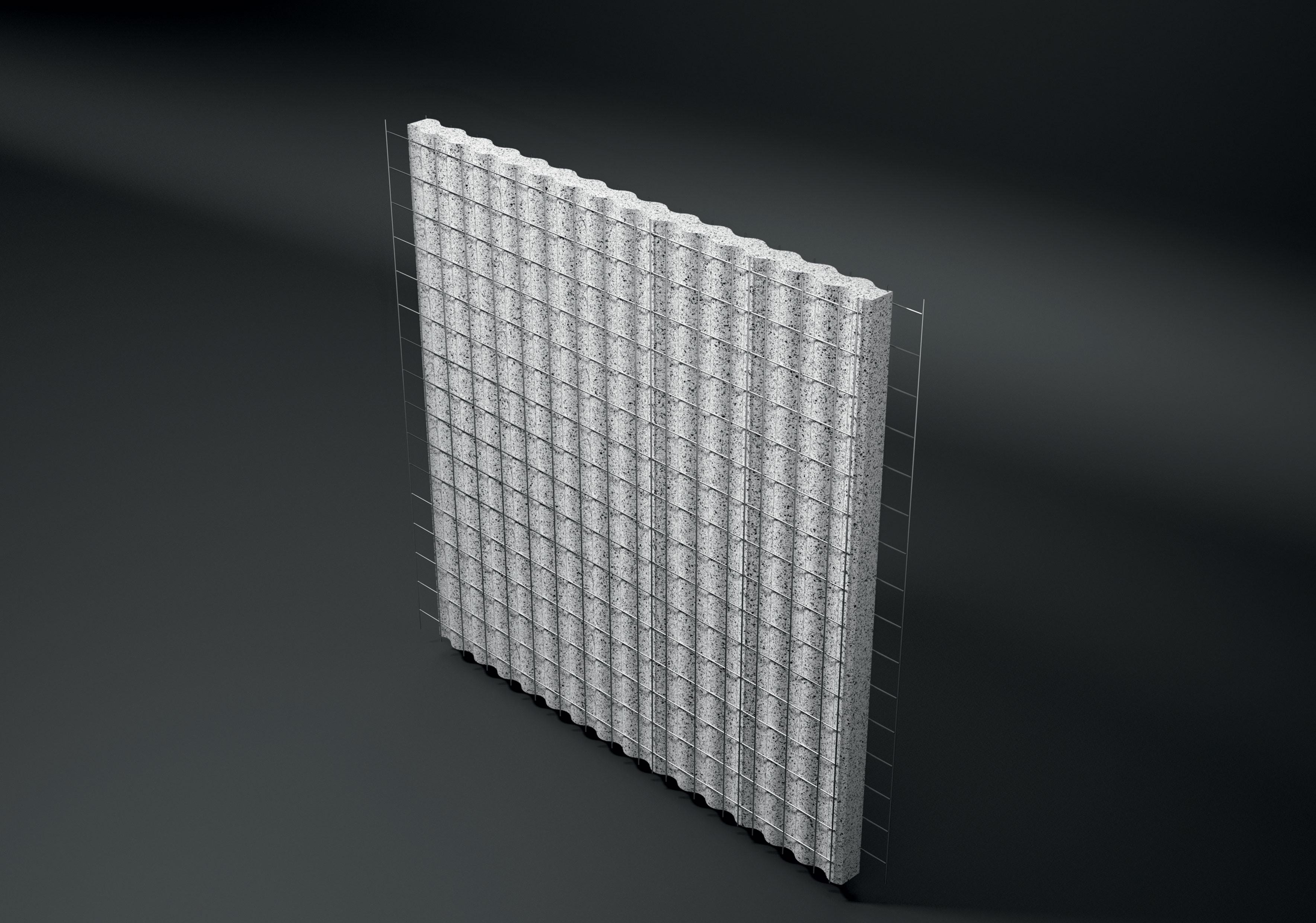

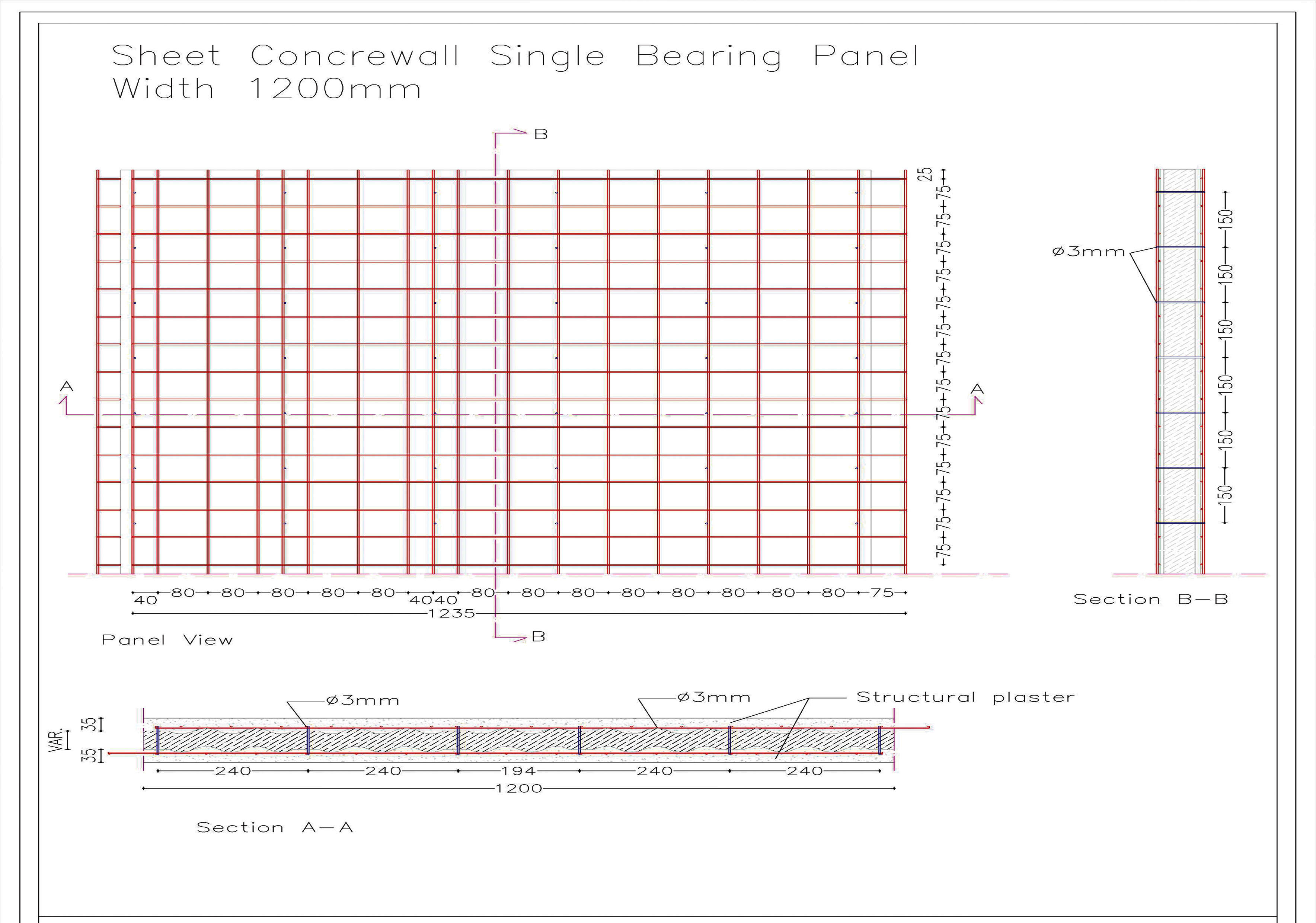

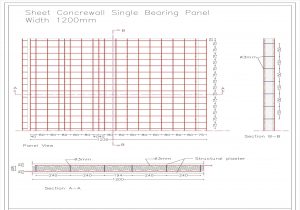

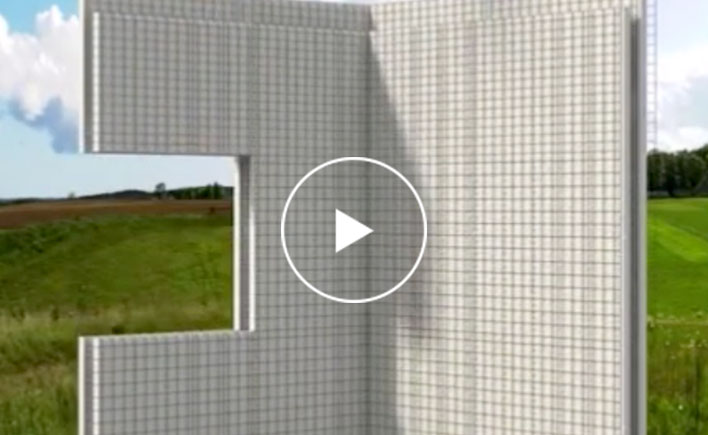

single panel pcsp

Used As

Load bearing wall for buildings up to 3/4 storeys. Panels are finished on site by structural shotcrete on both sides.

Materials

EPS

EPS sheet width: 1200mm
Density 15 Kg/m³
Self extinguishing EPS

MESH

Galvanized steel mesh
Stress tension up to 700 N/mm2

STRUCTURAL PLASTER

M25Grade ≥ 25 N/mm2
Thickness: 35 mm on both the sides

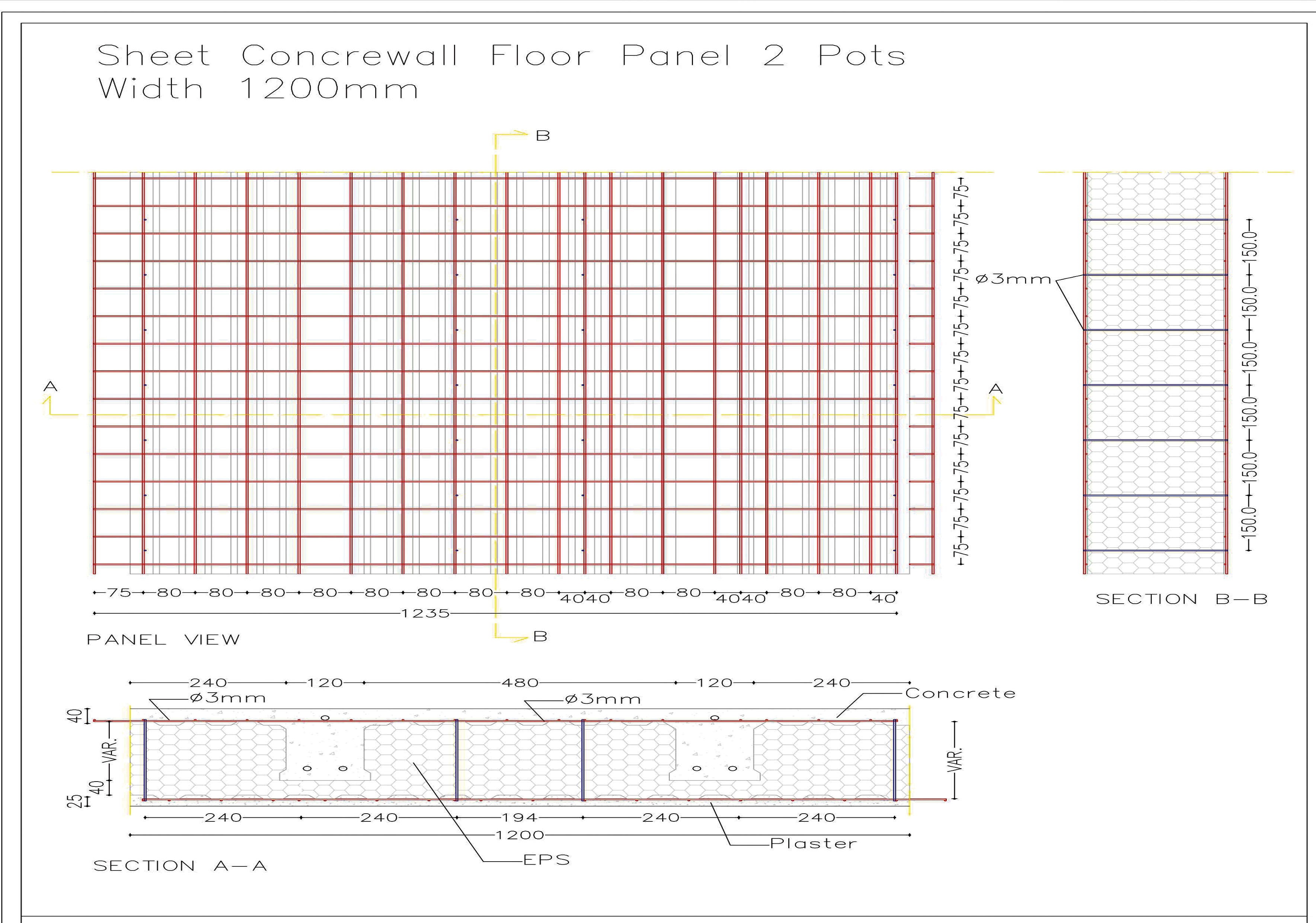

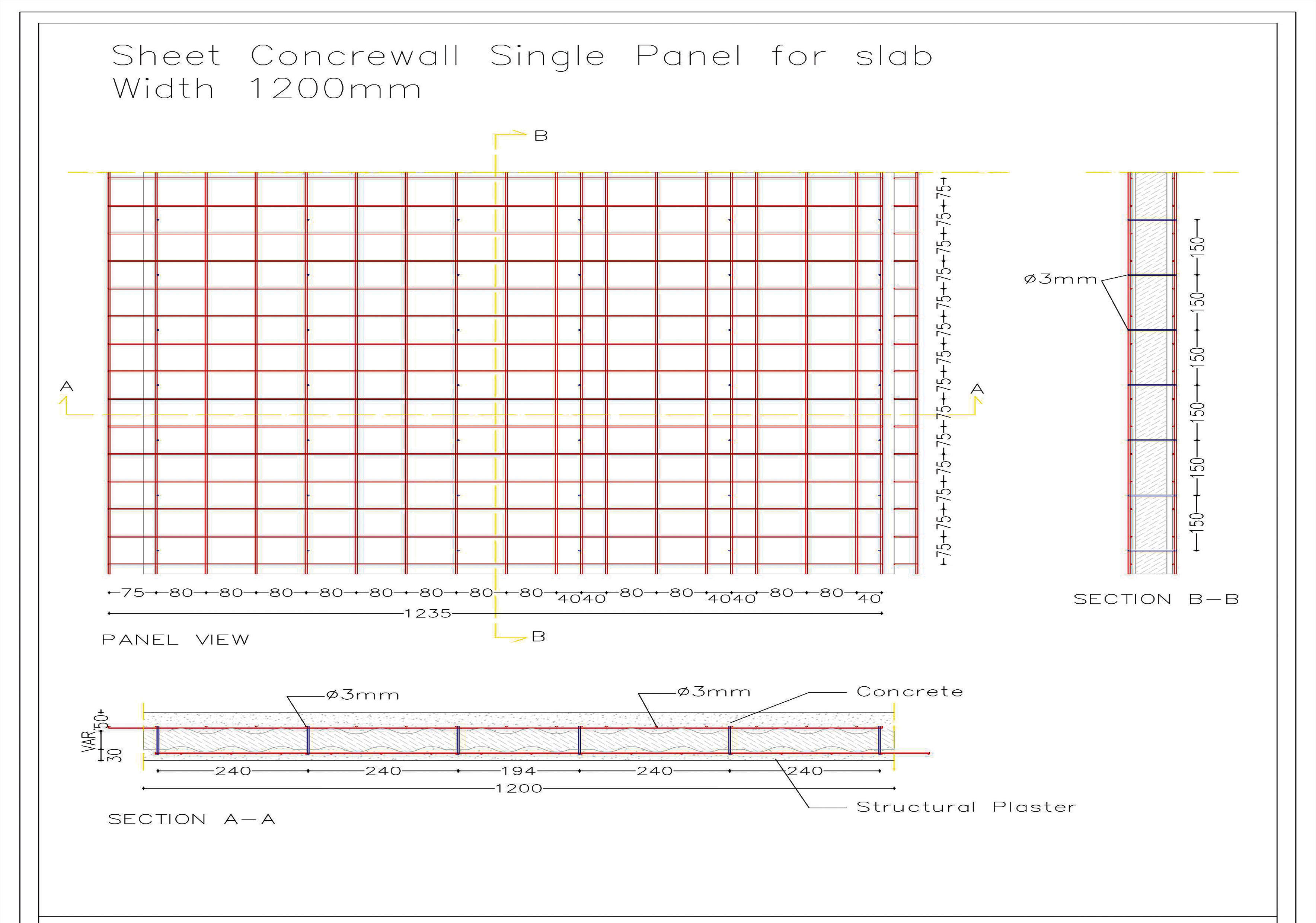

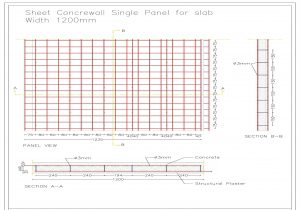

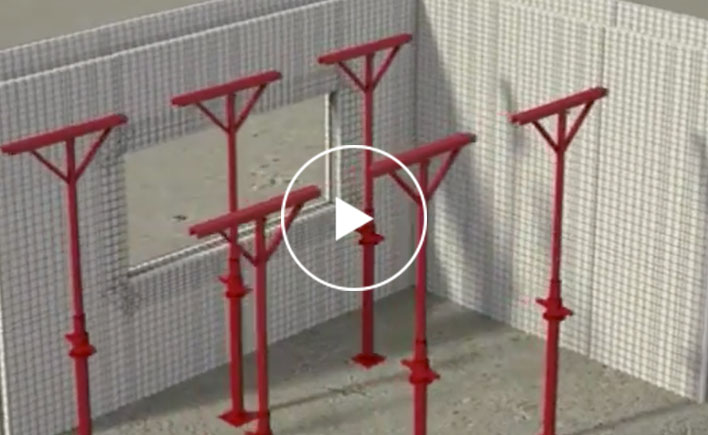

FLOOR panel pcsOL

Used As

Floors or roofs with spans up to 9 m. These panels are characterized by the presence of joists. The joists are reinforced on site by steel bars according to the structural verification and they are finished by 4cm of casted concrete in the upper side and 2.5 cm of projected plaster in the lower side.

Materials

EPS

EPS sheet width: 1200mm
Density 10-15 Kg/m³
Self extinguishing EPS

MESH

Galvanized steel mesh
Stress tension up to 700 N/mm2

CONCRETE (UPP SIDE)

M25Grade ≥ 25 N/mm2
Thickness: 50 mm on the upper side

NON STRUCTURAL PLASTER (LOW SIDE)

M25Grade < 15 N/mm2
Thickness: 25 mm on the lower side

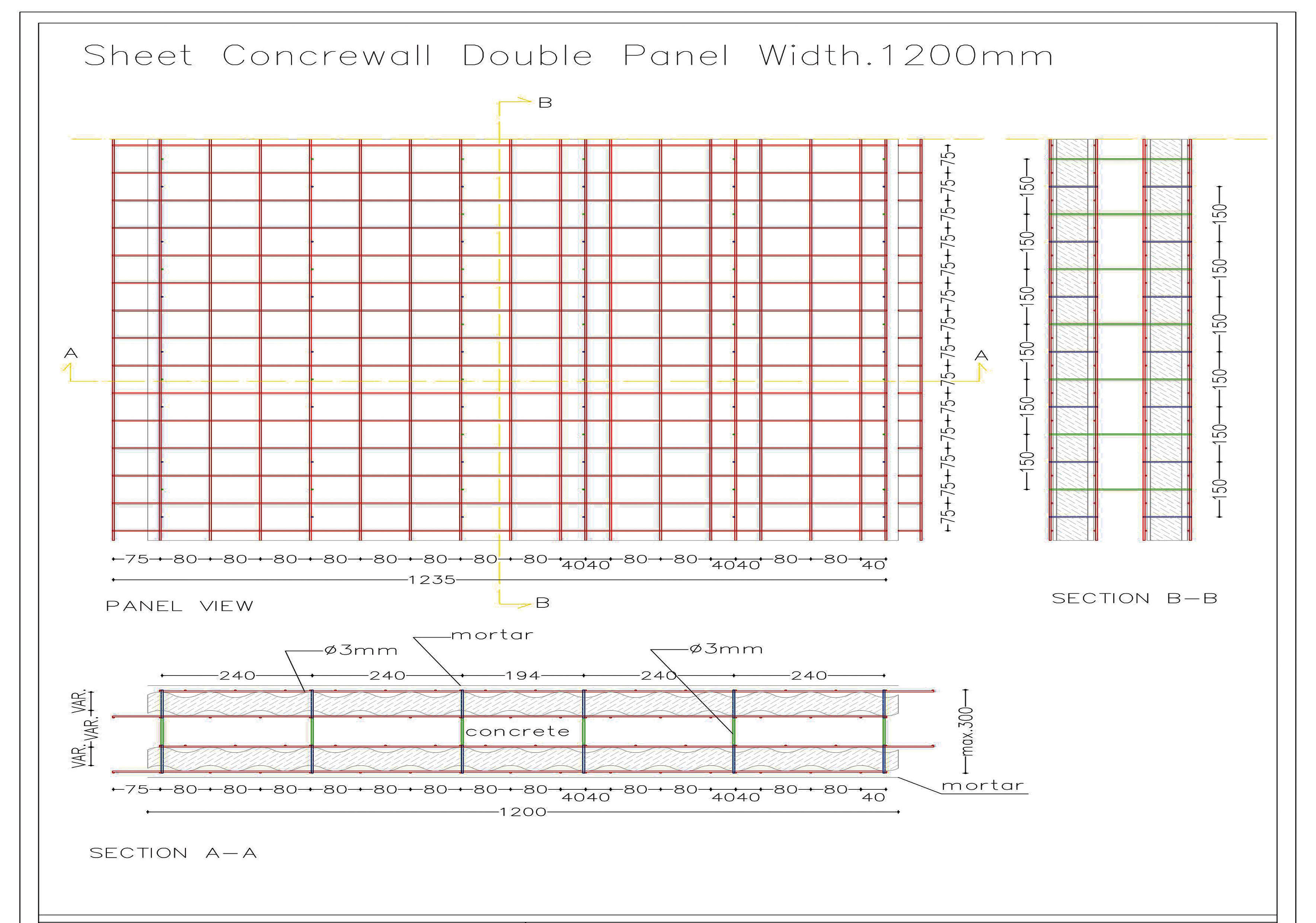

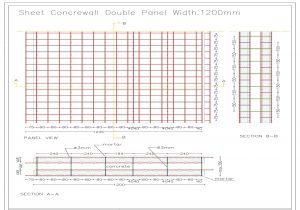

double panel pcdo

Used As

Load bearing wall for one-storey / multi storey buildings. The use limitation of this panel is given only by the structural verifications. This panel consists of 2 single panels PCSP connected to each other at a defined distance by some steel connectors welded in electro-fusion. Double panel is finished on site casting the concrete in the internal gap and projecting non-structural plaster in the external sides.

Materials

EPS

EPS sheet width: 1200mm
Density 25 Kg/m³
Self extinguishing EPS

MESH

Galvanized steel mesh
Stress tension up to 700 N/mm2

CONCRETE (internal gap)

M25Grade ≥ 25 N/mm2
Thickness of gap : 80 – 180 mm

NON STRUCTURAL PLASTER (LOW SIDE)

M15Grade < 15 N/mm2
Thickness: 20 – 25 mm on both the sides

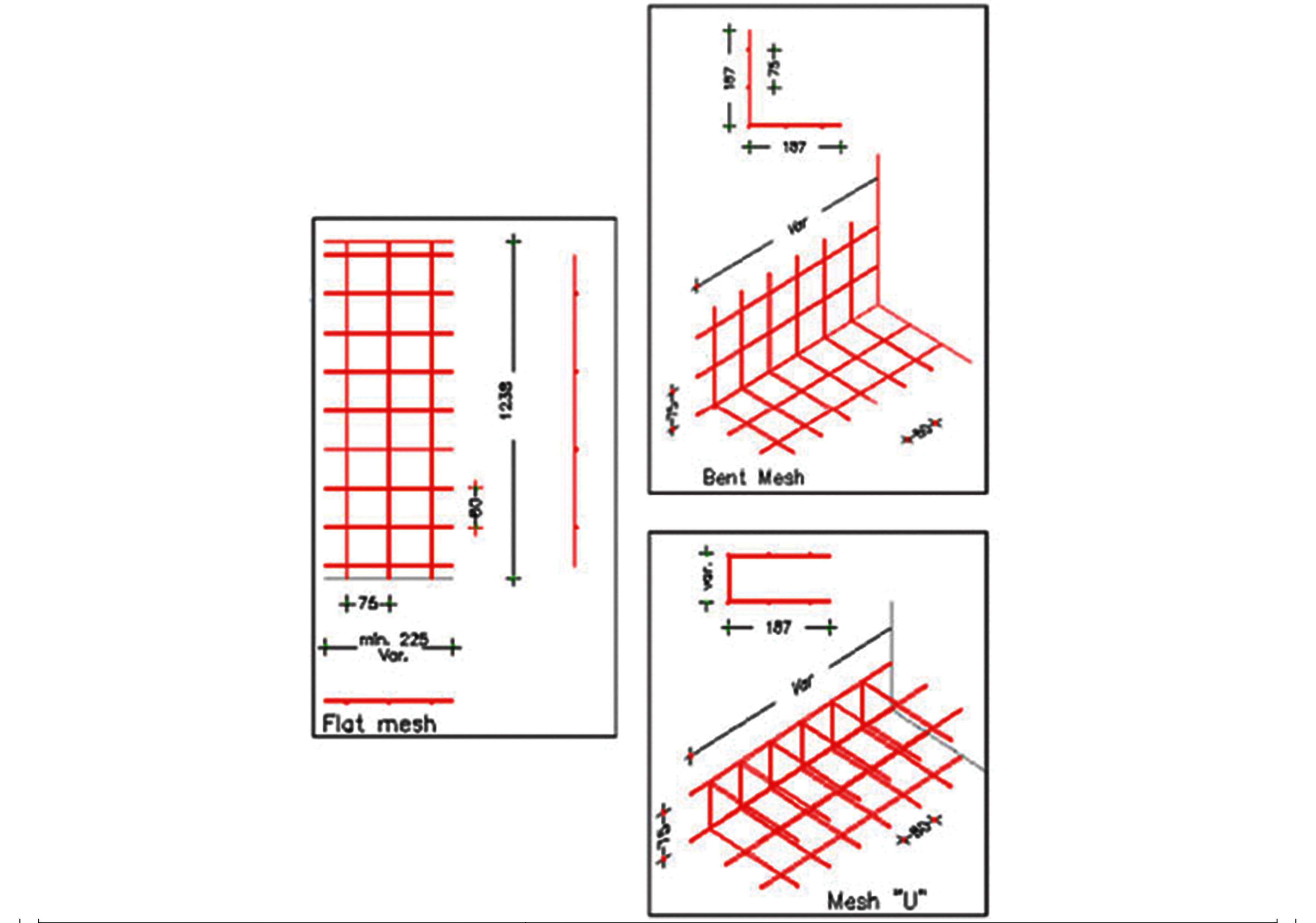

REINFORCEMENT MESH

The reinforcement meshes are used to reinforce openings and corner – joints between panels so to confer continuity to structural mesh.

BENT MESH

The bent mesh is used to reinforce the connection in the corners between wall/wall and wall/slab.

FLAT MESH

The flat mesh is used :
To reinforce for doors and windows ( at 45º)
To restore the mesh where it has been cut
For any joints between panels

“U” MESH

The “U” mesh is used along the perimeter of doors and windows.

CONNECTION DETAILS

CORNER WALL CONNECTION DETAILS

CORNER WALL CONNECTION DETAILS

SLAB WALL CONNECTION DETAILS

SLAB WALL CONNECTION DETAILS

SLAB CONCEALED BEAM STIFFNER

SLAB CONCEALED BEAM STIFFNER

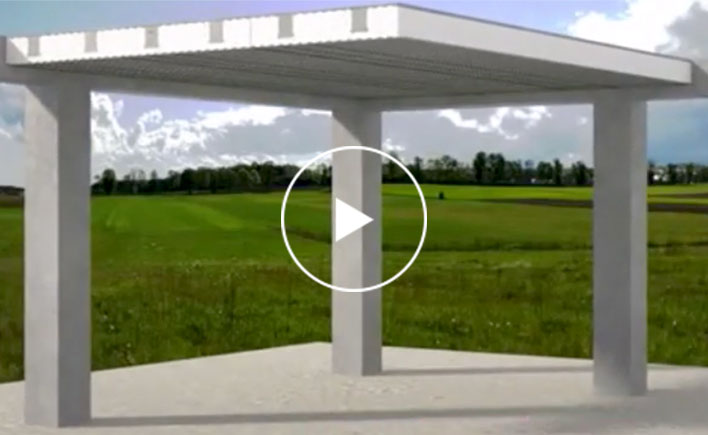

BEAMS COLUMN & SLAB CONNECTIONS

BEAMS COLUMN & SLAB CONNECTIONS
